2.4 inch TFT LCD Display IC ST7789V with SPI Interface Custom lcd module
YT024C021 is a color active matrix thin film transistor (TFT) liquid crystal display without polarizer. This model is composed of amorphous silicon TFT as a switching device. It is a transmissive type display operating in the normally white mode.
This TFT LCD has a 2.4-inch diagonally measured active display area with 240 x 320 dot (240 horizontal by 320 vertical pixel) resolution. Each pixel is divided into Red, Green, Blue dots which are arranged in vertical stripes.
Features
1.0.5t Glass
2.Thin and light weight
3.Low Power consumption, High trans, High CR, Wide view angle
4.RoHS Compliant
Application
Adiadisplay modules had been widely used in all kinds of industries,like smart watch,smart bracelet,smart home,smart robots,smart furniture, car system, cummunication devices, tablet,POS devices,medical equipments, education devices, bike DVR,3D printer, industrial controller, security equipment,digital greeting card, recreation equipment etc...
General Specifications
| NO. | Item | Specification | Unit | Remark |
| 1 | LCD Size | 2.4 | inch | - |
| 2 | Panel Type | T N | - | - |
| 3 | Resolution | 240x (RGB) x 320 | pixel | - |
| 4 | Display Mode | Normally White | - | - |
| 5 | Display Number of Colors | 262K | - | Note |
| 6 | Viewing Direction | 12'Clock | - | - |
| 7 | Contrast Ratio | 250(min) | - | - |
| 8 | Luminance | 300(TYP) | cd/m2 | Note |
| 9 | Module Size | 42.72(W) ×60.26( L) ×2.3(T) | mm | Note |
| 10 | Active Area | 36.72( W) × 48.96(L) | mm | - |
| 11 | Pixel Pitch | 0.153(W ) x 0.153(L) | mm | - |
| 12 | Weight | - | g | - |
| 13 | Driver IC | ST7789V | - | - |
| 14 | Driver IC RAM Size | 240 x24 x320 | bit | - |
| 15 | Light Source | 4LEDs White | - | - |
| 16 | Interface | 3Line/ 4-Line | - | - |
| 17 | Operating Temperature | -20~70 | ºC | - |
| 18 | Storage Temperature | -30~80 | ºC | - |

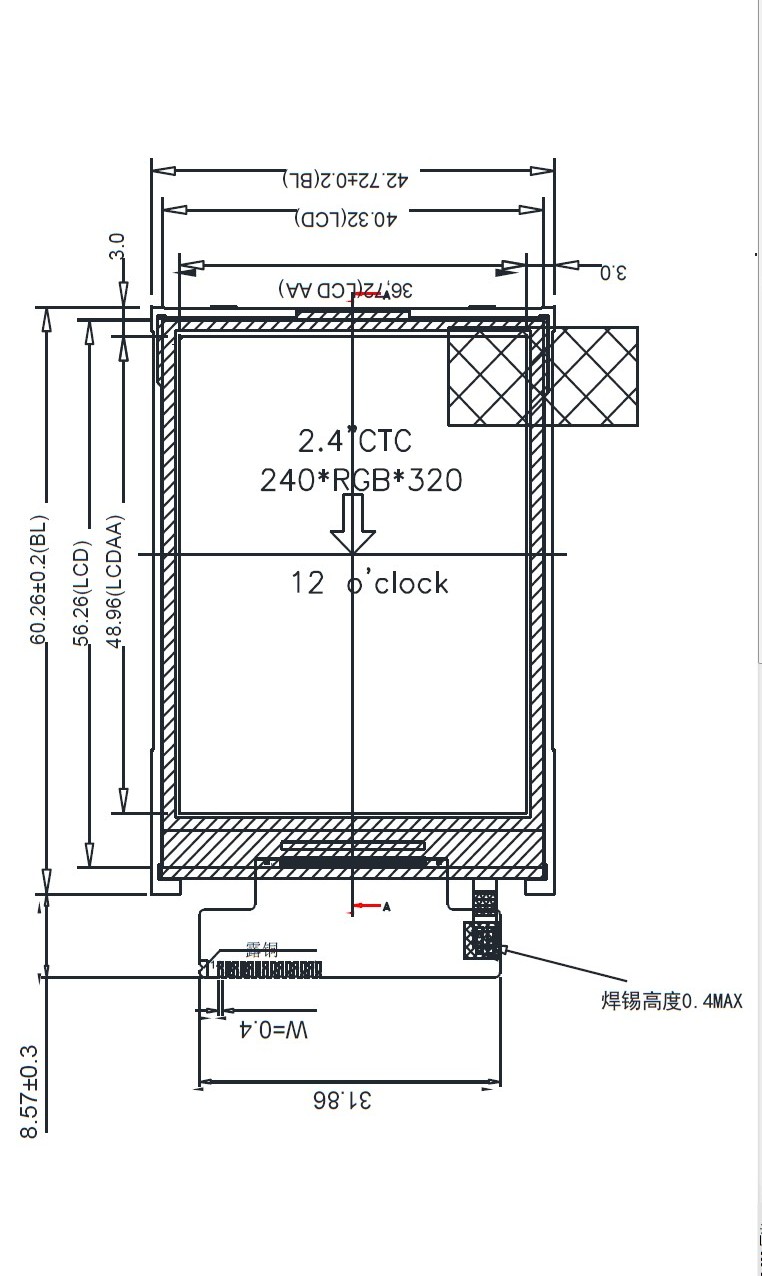

Outline Dimension (unit: mm)
Related Products
| | | | TFT-LCM(mm) | | | | |
| Size | Model No. | Resolution | H | V | T | Golden finger spacing | Interface | PIN | IC |
| 2.4 | YT024HT012-V5 | 240x320 | 42.72 | 60.26 | 3.45 | P0.8/W0.4 | MCU8bit | 37 | ILI9341 |
| 2.4 | YT024HT012-V6 | 240x320 | 42.72 | 60.26 | 3.45 | P0.8/W0.4 | MCU8bit | 37 | ILI9341 |
| 2.4 | YT024T012 | 240x320 | 42.72 | 60.26 | 2.25 | P0.8/W0.4 | MCU8bit | 37 | HX8347-G(T) |
| 2.4 | YT024T012-V1 | 240x320 | 42.72 | 60.26 | 2.25 | P0.8/W0.4 | MCU8bit | 37 | HX8347-G(T) |
| 2.4 | YT024T012-V2 | 240x320 | 42.72 | 60.26 | 2.25 | P0.8/W0.4 | MCU8bit | 37 | HX8347-G(T) |
| 2.4 | YT024T012-V3 | 240x320 | 42.72 | 60.26 | 2.25 | P0.8/W0.4 | MCU8bit | 37 | HX8347-G(T) |
| 2.4 | YT024T012-V3-NEW | 240x320 | 42.72 | 60.26 | 2.25 | P0.8/W0.4 | MCU8bit | 37 | HX8347-G(T) |
| 2.4 | YT024TT012 | 240x320 | 42.72 | 60.26 | 3.30 | P0.8/W0.4 | MCU8bit | 37 | HX8347-G(T) |
| 2.4 | YT024TT012-V1 | 240x320 | 42.72 | 60.26 | 3.30 | P0.8/W0.4 | MCU8bit | 37 | HX8347-G(T) |
| 2.4 | YT024TT012-V4 | 240x320 | 42.72 | 60.26 | 3.30 | P0.8/W0.4 | MCU8bit | 37 | HX8347-G(T) |
| 2.4 | YT024TT012-V5 | 240x320 | 42.72 | 60.26 | 3.40 | P0.8/W0.4 | MCUHIGH8bit | 37 | NV3029 |
| 2.4 | YT024T012-V5 | 240x320 | 42.72 | 60.26 | 2.25 | P0.8/W0.4 | MCU8bit | 37 | HX8347-G(T) |
| 2.4 | YT024T012-V6 | 240x320 | 42.72 | 60.26 | 2.25 | P0.8/W0.4 | MCU8bit | 37 | HX8347-G(T) |
| 2.4 | YT024T012-V6-NEW | 240x320 | 42.72 | 60.26 | 2.25 | P0.8/W0.4 | MCU8bit | 37 | HX8347-G(T) |
| 2.4 | YT024T012-V16 | 240x320 | 42.72 | 60.26 | 2.25 | P0.8/W0.4 | MCU8bit | 37 | HX8347I |
| 2.4 | YT024T012-V7 | 240x320 | 42.72 | 60.26 | 2.25 | P0.8/W0.4 | MCU8bit | 37 | HX8347-G(T) |
| 2.4 | YT024T012-V8 | 240x320 | 42.72 | 60.26 | 2.25 | P0.8/W0.4 | MCU8bit | 37 | HX8347-G(T) |
| 2.4 | YT024T012-V9 | 240x320 | 42.72 | 60.26 | 2.30 | P0.8/W0.4 | MCU8bit | 37 | ILI9341 |
| 2.4 | YT024T012-V10 | 240x320 | 42.72 | 60.26 | 2.30 | P0.8/W0.4 | MCU8bit | 37 | HX8347-G(T) |
| 2.4 | YT024T012-V11 | 240x320 | 42.72 | 60.26 | 2.30 | P0.8/W0.4 | MCUHIGH8bit | 37 | NV3029 |
| 2.4 | YT024T012-V12 | 240x320 | 42.72 | 60.26 | 2.30 | P0.8/W0.4 | MCU低8bit | 37 | NV3029 |
| 2.4 | YT024T012-V13 | 240x320 | 42.72 | 60.26 | 2.30 | P0.8/W0.4 | MCUHIGH8bit | 37 | NV3029 |
| 2.4 | YT024T012-V14 | 240x320 | 42.72 | 60.26 | 2.30 | P0.8/W0.4 | MCUHIGH8bit | 37 | NV3029 |
| 2.4 | YT024T012-V15 | 240x320 | 42.72 | 60.26 | 2.30 | P0.8/W0.4 | MCUHIGH8bit | 37 | NV3029 |
| 2.4 | YT024L012 | 240x320 | 42.72 | 60.26 | 1.85 | P0.8/W0.4 | MCUHIGH8bit | 37 | ILI9341 |
| 2.4 | YT024LT012-V1 | 240x320 | 42.72 | 60.26 | 3.00 | P0.8/W0.4 | MCUHIGH8bit | 37 | ILI9341 |
| 2.4 | YT024L012-V2 | 240x320 | 42.72 | 60.26 | 2.30 | P0.8/W0.4 | MCUHIGH8bit | 37 | R61526 |
| 2.4 | YT024M012 | 240x320 | 42.72 | 60.26 | 2.25 | P0.8/W0.4 | MCU8bit | 37 | HX8347-D |
| 2.4 | YT024M012-V1 | 240x320 | 42.72 | 60.26 | 2.25 | P0.8/W0.4 | MCU8bit | 37 | ILI9338B |
